CS-482M Kit

CH4 / T1002 / MS-5 / S-52

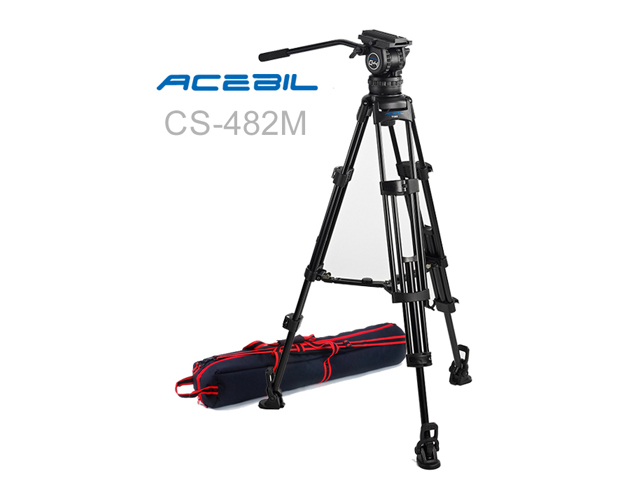

The CS-482M Professional Tripod System includes a 100mm CH4 fluid head, T1002 aluminum tripod, MS-5 mid spreader, and an S-52 carry case.


The CS-482M Professional Tripod System from Acebil includes a 100mm CH4 fluid head, T1002 aluminum tripod, MS-5 mid spreader, and an S-52 carry case. The tripod features a two-stage design and aluminum construction that supports loads up to 12kg / 26.4lb It provides a height range from 81-165cm / 31.9”-65” and comes equipped with a sliding quick-release plate and pan bar.

  • 100mm ball
  • Two Stage Aluminum Tripod
  • Supports loads up to 12kg / 26.4lb
  • Height range: 81-165cm / 31.9”-65”

Payload 12kg / 26.4lb
CB Payload 0~10kg / 0~22.0lb
Counter Balance Free + 6 Steps
Pan Drag Free + 4 Steps
Tilt Drag Free + 4 Steps
Tilt Angle +90° / -70°
LED Bubble Level Illumination No
Camera Plate Slide Plate
Plate Attachment 1/4-20" Screw
Spare Camera Screw 3/8" Screw
Slide Range +50 / -50 mm
Weight 6.4kg / 14.1lb
Height 81-165cm / 31.9”-65”
Ball Diameter 100mm
Leg Section 2 Stage
