CINE90 / CINEOB / Mid Spreader / TC-130

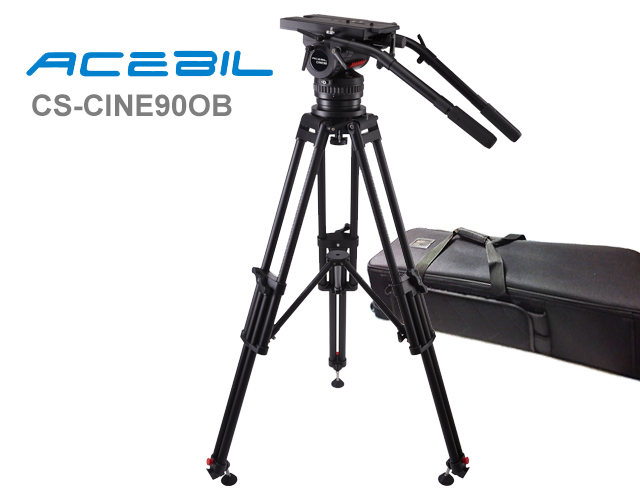

The CS-CINE90OB Professional Tripod System from Acebil includes a flat base CINE90 fluid head, OB Aluminum Tripod, Middle Spreader, and TC-130 case. The tripod features a single-stage aluminum design that supports loads up to 140kg / 308Ib.

CINE90 / CINEOB / Mid Spreader / TC-130

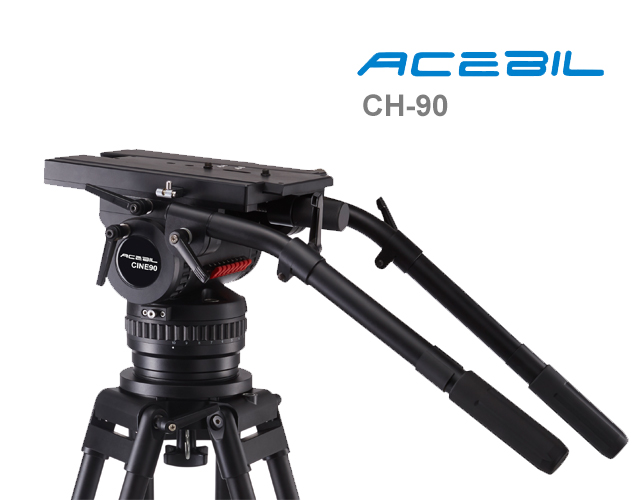

The New CINE90 Professional fluid head from Acebil is a beautiful broadcast setup. Perfect for EFP / HD camera configurations weighing up to 60kg. It features a flat base, extra large camera plate, with adjustable drag and counterbalance.

  • 150mm Flat Base
  • Heavy Duty Aluminum Tripod
  • Supports loads up to 90kg / 198lb
  • Height range: 1.03-1.61m / 40.6-63.4"

Payload 90kg / 198lb
CB Payload 0-60kg / 0-132lb

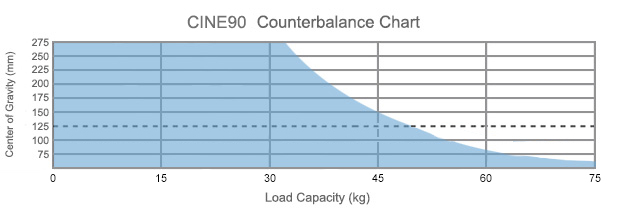

Counter Balance 18 Steps (1-10 + 8 Boost Steps
Pan Drag 10 Steps
Tilt Drag 10 Steps
Tilt Angle +90° / -60°
LED Bubble Level Illumination Yes
Camera Plate V Plate
Plate Attachment Double 3/8" Screw
Spare Camera Screw 1/4" & 3/8" Screw
Slide Range 180mm
Weight 33.4kg / 73.7lb
Height 1.03-1.61m / 40.6-63.4"
Ball Diameter Flat Base
Leg Section Single Stage
